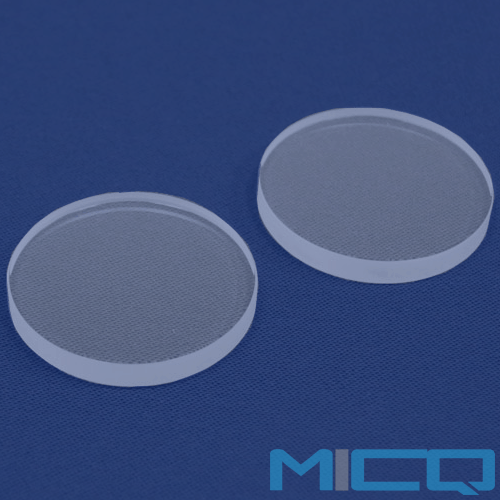

Many optical engineers are often confused when they first come into contact with sapphire plates. Despite being optical windows, sapphire is more expensive and more difficult to process than ordinary glass. What are the reasons for this? This article commences with a review of prevalent cognitive misconceptions and provides comprehensive responses to critical technical inquiries concerning the selection, processing, coating, and application of sapphire window in a structured question-and-answer format.

1. Why are sapphire windows more difficult to process than ordinary glass windows?

Sapphire (Al2O3 crystal) has a Mohs hardness of 9, making it one of the hardest materials after diamond. Consequently, its processing efficiency is significantly reduced, and there is severe tool wear. During the processing, conventional grinding and polishing techniques require the use of diamond grinding wheels or diamond grinding fluids; otherwise, the material cannot be effectively removed. However, it is important to note that sapphire is relatively brittle and can be susceptible to chipping or cracking if not processed correctly.

2. How to choose the transmittance specification of sapphire windows?

The transmittance of uncoated sapphire is typically between 85% and 92%, while with an AR anti-reflection coating, it can be increased to over 98%. Sapphire’s refractive index is approximately 1.762, which results in enhanced surface reflectance and low light transmittance before coating. Coating technology, such as the application of multiple layers of interference films to the surface of the sapphire window, is an effective solution to reducing reflection and enhancing light transmission efficiency.

3. Can sapphire windows withstand high-temperature or corrosive environments?

Sapphire boasts both high-temperature resistance and corrosion resistance, making it an optimal choice for harsh environments. Sapphire has a melting point of 2040°C and is chemically stable, resistant to corrosion by most acid, alkali and salt solutions. Therefore, it is a popular choice in a variety of industries, including aerospace, medical instruments and semiconductor equipment, where high-temperature or chemical stability are key requirements.

4. What shapes and custom processing options are available for sapphire windows?

Sapphire can be processed into various shapes, including round, square, irregular, stepped, spherical, and more. It can undergo complex operations such as drilling and slotting. The processing of sapphire primarily utilizes advanced technologies such as precision grinding, ultrasonic drilling, and laser cutting. Due to its high hardness, the processing of irregular shapes requires precise equipment and skilled craftsmanship. For instance, when drilling holes, it is necessary to avoid stress concentration causing cracks.

5. What should be noted when using sapphire plates in laser protection applications?

Sapphire has high laser transmittance and an excellent anti-damage threshold. However, attention should be paid to the anti-laser damage ability of the coating layer. While sapphire windows themselves have good anti-damage performance for high-power laser applications, the coating layer may be damaged if it is not properly designed due to absorbing laser energy.

6. What are the key requirements for sapphire window plates in medical instruments?

The most important core indicators are biocompatibility, cleanliness and resistance to chemical corrosion. Medical instruments such as endoscopes and surgical instruments require sapphire windows that are medically clean and free from scratches and contamination. They also need to be resistant to the corrosion of disinfectants, such as alcohol and ethylene oxide. Selecting non-medical-grade windows may pose risks of cross-contamination or material degradation.
