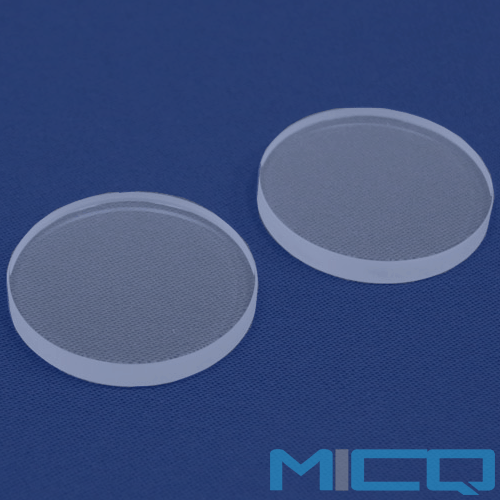

Sapphire glass, as a high-performance optical material, has been widely utilized in the field of infrared optical windows. Its exceptional physical and chemical properties render it a critical component in infrared optical systems. This article examines the application of sapphire glass in infrared optical windows, analyzing its advantageous characteristics and application scenarios.

Sapphire glass is characterized by its high hardness, with a Mohs hardness of 9, making it resistant to abrasion and impact in extreme environments. In the context of high-speed aircraft, infrared windows must be engineered to withstand the impact of sand, dust, raindrops and other particles in high-speed airflow. Sapphire glass boasts excellent abrasion resistance, thereby ensuring that the optical system maintains clear imaging quality for a long time. Meanwhile, its compressive strength is as high as over 2GPa, making it capable of withstanding high dynamic pressure environments.

In relation to its optical capabilities, sapphire glass features a broad spectrum of light transmission, spanning from the ultraviolet to the mid-infrared range. This wide-spectrum transmission characteristic enables full compatibility with the operating wavelengths of various infrared detectors, including short-wave, mid-wave and long-wave infrared systems. It is particularly noteworthy that in the mid-wave infrared wavelength of 3-5μm, the transmittance can exceed 85%, a critical factor for applications such as thermal imaging. In addition, its relatively low coefficient of thermal expansion (approximately 5.3×10^-6/K) enables stable optical performance in environments with drastic temperature changes and reduces optical distortion caused by thermal stress.

Sapphire glass is notable for its chemical stability, which represents a significant advantage. It boasts excellent resistance to most acids, alkalis and solvents, and is able to maintain stable performance even in high-temperature and high-pressure corrosive environments. This characteristic renders sapphire glass especially well-suited for use in infrared optical windows in challenging environments, such as chemical process monitoring and deep-sea exploration. In the marine environment, sapphire windows are able to withstand the corrosive effects of seawater for extended periods. In the petrochemical industry, it is able to withstand the erosion of various corrosive gases.

In the practical application of infrared optical windows, the processing technology of sapphire glass is also of vital importance. Crystal growth technology allows the preparation of large-sized sapphire single crystals that exhibit high optical quality. Common growth methods include the Kjeldahl method, heat exchange method and EFG method. These techniques can control crystal orientation, reduce internal defects and improve optical uniformity of sapphire windows. In subsequent processing, precision polishing technology can achieve a nanometer-level roughness on the surface of sapphire windows, reducing light scattering loss. Special coating techniques have been developed to enhance the transmittance of specific wavelengths or increase surface hardness.

Sapphire infrared windows are widely used in industrial inspection, security monitoring, medical equipment and other fields. On the steel production line, infrared thermal imagers equipped with sapphire windows can monitor the temperature of molten steel in real time. In the power system, it is used for infrared inspection of transformer substation equipment. In the medical field, sapphire windows are used in laser surgery equipment and medical thermal imagers. The development of intelligent driving technology has led to the adoption of sapphire windows in vehicle-mounted infrared night vision systems, with the aim of enhancing driving safety.

Sapphire glass, owing to its exceptional overall performance, has emerged as a critical material in the field of infrared optical windows. From space exploration to everyday applications, sapphire infrared windows are increasingly being used across diverse domains. Due to ongoing improvements in materials science and manufacturing technologies, sapphire infrared windows are set to achieve further enhancements in performance. This will expand their application prospects and provide robust support for the advancement of infrared optical systems.
