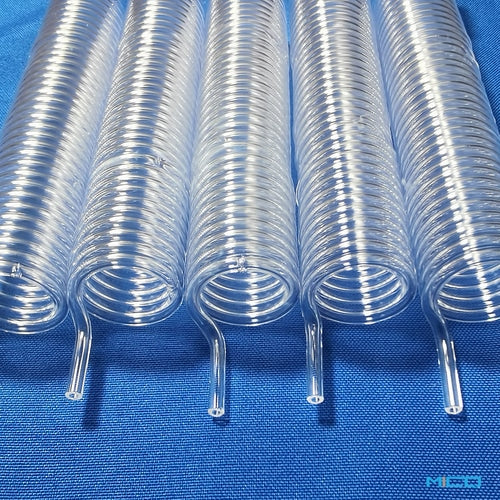

In high-tech fields such as semiconductors, optics, and photovoltaics, quartz spiral tubes play a critical role in determining equipment stability and efficiency. This article will systematically analyse the manufacturing logic of quartz spiral tubes, from raw material characteristics and production processes to application scenarios. It provides a comprehensive technical understanding of quartz spiral tubes.

1. The core advantages of quartz spiral tubes

The raw material used in the manufacture of quartz spiral tubes is high-purity silicon dioxide (SiO2), with a purity of over 99.99%. This material has two major characteristics: Firstly, it is highly resistant to high temperatures and can be used for extended periods in environments up to 1100℃ without deformation. The second is chemical stability. It is highly resistant to reactions with acids, bases and other substances, ensuring reliable performance even in harsh environments. For instance, in the field of semiconductor etching equipment, quartz spiral tubes are required to endure the high temperatures generated by plasma. The purity of these tubes directly impacts the etching precision and the longevity of the equipment.

2. The precise manufacturing process from raw materials to finished products

The production of quartz spiral tubes requires going through multiple precise processes.

(1) Raw material purification

Quartz sand is purified to a high-purity state through a chemical vapour deposition (CVD) process or flame hydrolysis, effectively removing impurities such as metal ions.

(2) Melting drawing

The purified quartz is heated to over 2000°C to form molten glass, which is subsequently drawn into quartz tubes with uniform diameters by a drawing machine.

(3) Spiral molding

Quartz tubes are bent using CNC machine tools. The formation of a spiral structure that meets the design requirements is achieved by precisely controlling the bending radius and angle. At this stage, it is imperative to take measures to avoid the risk of cracking caused by stress concentration.

(3) Surface treatment

Through processes such as acid washing and polishing, surface micro-cracks are removed to enhance light transmittance and mechanical strength, meeting the strict requirements for surface finish in fields like optics and medical care.

3. Diversified expansion

(1Semiconductor industry

Quartz spiral tubes are an essential component of wafer processing equipment. They are used to transport high-temperature etching gases, and their corrosion resistance prevents gas contamination of the wafer surface.

(2) The photovoltaic field

In the production of solar cells, quartz spiral tubes are essential components of diffusion furnaces, requiring durability to withstand the high temperatures of the diffusion process, ensuring consistent silicon wafer doping.

(3) Scientific research experiment

In the field of spectral analysis and quantum computing, quartz spiral tubes are used as optical transmission media, so it is essential that they meet requirements such as ultra-low loss and high stability.

The manufacturing of quartz spiral tubes is a comprehensive embodiment of materials science, precision processing and quality control. From the purification of raw materials to the inspection of finished products, each stage of the process must be strictly controlled in order to produce products that meet the stringent requirements of the high-end sector. For users, selecting high-quality quartz spiral tubes with established technology and a comprehensive testing system is paramount to ensuring product performance and stability.
