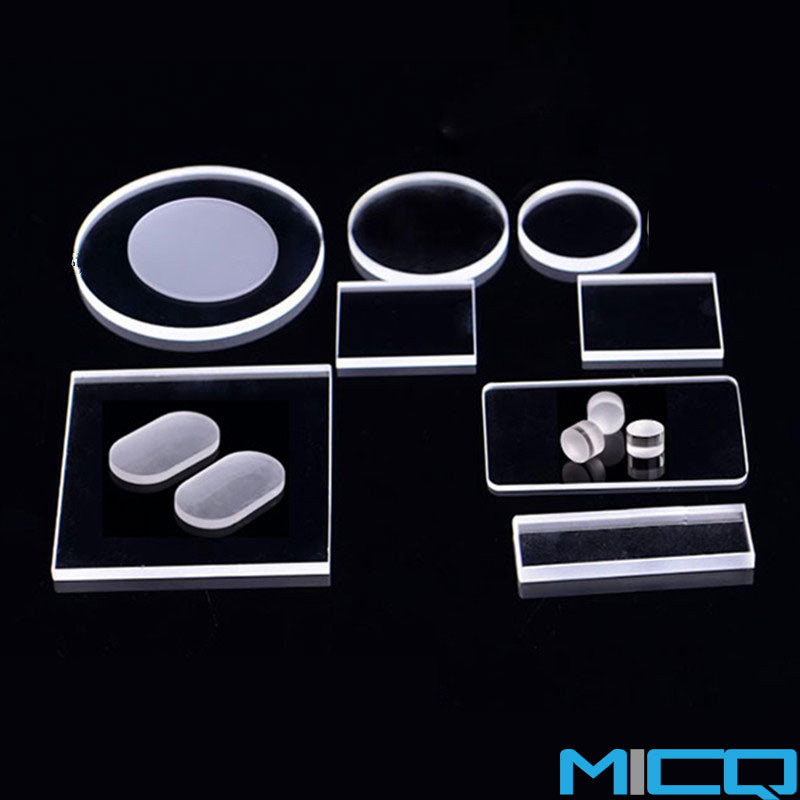

Sapphire plates are an optical material that has been widely applied due to their excellent physical and chemical properties. In addition to its optical properties, the electrical and dielectric properties of sapphire plates are also important characteristics that cannot be ignored in practical applications. This article commences with a detailed examination of the crystal structure of sapphire, encompassing its essential parameters such as electrical conductivity, dielectric constant, and breakdown field strengths, to delve into the influences of these parameters on device design.

Sapphire is a single-crystal alumina material with a hexagonal crystal system structure. This close-packed crystal structure endows sapphire with high chemical stability and strength, as well as with unique electrical properties. With regard to electrical conductivity, pure sapphire displays low electrical conductivity at room temperature. In practical applications, this characteristic of sapphire plates allows them to effectively isolate current and prevent signal interference. This makes them particularly suitable for use as observation windows in high-voltage or high-frequency environments.

The dielectric properties of sapphire are equally remarkable. At room temperature, its relative dielectric constant is approximately 9.3 to 11.5, demonstrating clear anisotropy. This moderate dielectric constant gives sapphire an advantage in high-frequency applications, as it can provide sufficient capacitive effect without introducing excessive dielectric loss. Sapphire exhibits low energy loss in an alternating electric field, making it highly suitable for use as insulating components in high-frequency devices or microwave windows.

Another key performance indicator when measuring the electrical performance of insulating materials is breakdown field strength. Sapphire demonstrates exceptional performance in this aspect, with its DC breakdown field strength significantly exceeding that of the majority of insulating materials. Sapphire plates boast a high breakdown field strength characteristic that enables them to operate stably in high-voltage environments without experiencing dielectric breakdown due to overly strong electric fields. In high-voltage discharge experiments, for instance, sapphire plates are often used as observation windows, ensuring the requirements of optical observation and enabling them to withstand the high-voltage impact during the experiment.

Temperature has a significant impact on the electrical and dielectric properties of sapphire. As the temperature rises, the electrical conductivity of sapphire increases exponentially. When the ambient temperature is increased from room temperature to 500°C, the electrical conductivity of sapphire may increase by 4 to 6 grades. In terms of dielectric constant, sapphire displays stability over a wide temperature range, a property which confers a distinct advantage in high-temperature electronic devices.

In the field of radio frequency and microwave technology, the dielectric properties of sapphire plates are of particular importance. Their moderate dielectric constant and low loss characteristics make them ideal high-frequency window materials. For instance, in microwave plasma equipment, sapphire windows effectively transmit microwave energy while maintaining the vacuum sealing of the cavity. By precisely calibrating the thickness of the window, impedance matching for specific frequency wavelengths can be achieved, thereby optimizing the efficiency of energy transmission.

The electrical and dielectric properties of sapphire plates make them valuable in a number of high-tech fields, ranging from basic insulating properties to complex dielectric behaviors. The properties of these materials are closely related to their structural characteristics, the preparation process and the usage environment. It is vital to understand these characteristics if sapphire plates are to be designed and applied in the most efficient way, thus meeting the growing demands.
