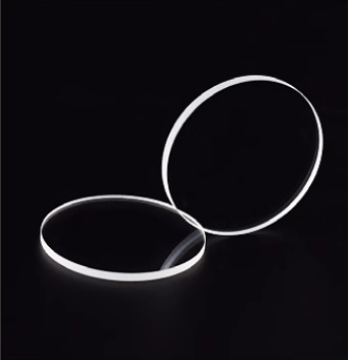

Sapphire window plates are key components in harsh working conditions where both electrical isolation and optical access are required simultaneously. This is due to their excellent optical transmittance, electrical insulation performance and mechanical strength. Its high dielectric strength, wide temperature range stability and corrosion resistance have enabled it to be used in a variety of fields, from high-voltage power equipment to cutting-edge sectors such as semiconductor manufacturing, radio frequency and microwave technology, and aerospace.

1. Typical applications

(1) Observation window for high-voltage power equipment

Installation is possible in high-voltage switch cabinets, vacuum circuit breakers, distribution equipment and electrical test chambers. It enables operators to visually inspect internal components under safety isolation. Its advantages include high dielectric strength, resistance to arc erosion and surface flashover, and a long service life.

(2) Vacuum and plasma process equipment

It is widely applied in cavities such as semiconductor etching, ion implantation, and thin film deposition, serving as an insulating optical channel between the process cavity and external detection instruments. Due to its strong resistance to plasma erosion and its non-release of gas, sapphire is well-suited to ultra-high vacuum environments.

 (3) Radio frequency and microwave systems

Due to its stable and low-loss dielectric properties at high frequencies, sapphire windows are used as vacuum-sealed interfaces in microwave transmission systems, radar radomes, transparent barriers in RF test fixtures, and satellite communication feeder windows.

(4) High-power lasers and photoelectric systems

Sapphire is an ideal material for use as an output or input window for industrial lasers, scientific research laser platforms and photoelectric sensors. It can achieve electrical isolation and withstand the thermal shock caused by high-power-density laser irradiation, while maintaining a high light transmittance across a broad wavelength range.

(5) Electrical measurement and sensing equipment

Sapphire glass has applications including high-voltage current sensors, photoelectric voltage transformers, and optical fibre sensing probes. It is able to effectively isolate strong electric field interference and permit the passage of the detection light signal, thus improving measurement accuracy and safety.

(6) Aerospace

Sapphire windows are ideal for use in airborne avionics, spaceborne optical payloads and high-reliability communication equipment. They maintain stable insulation and optical performance under extreme temperatures, strong radiation, vacuum and severe vibration conditions, meeting aerospace-grade reliability requirements.

(7) Power semiconductors and electronic packaging

Sapphire is an excellent insulating substrate or window cover for high-power IGBT modules, LED packages and dedicated ceramic substrates. It offers high insulation resistance, good thermal matching and corrosion resistance, ensuring the long-term stable operation of the devices.

2. Comprehensive advantages

(1) Outstanding electrical performance

The volume resistivity and dielectric strength of sapphire glass are much higher than those of ordinary glass or polymers, effectively preventing leakage and breakdown.

(2) Outstanding thermal stability

Within a wide temperature range of -50 °C to 1000 °C, there is minimal change in the dielectric constant and insulation resistance of sapphire.

(3) High mechanical strength

Sapphire has a Mohs hardness of 9, second only to diamond, and is highly resistant to scratches and impacts.

(4) Good environmental adaptability

It is resistant to moisture, salt spray, ultraviolet radiation, thermal cycling and chemical corrosion, making it suitable for outdoor, marine and industrial harsh environments.

(5) Decoupling of optics and electricity

Sapphire reliably provides electrical isolation without compromising optical transmission performance across the UV-visible-infrared wavelengths.
