In the current era of rapid technological development, laser projectors have gradually become highly sought-after in a variety of professional fields, including home theaters, business offices, education and training, engineering, and cinemas. This is due to their high-definition picture quality, wide color gamut, and flexible application scenarios.

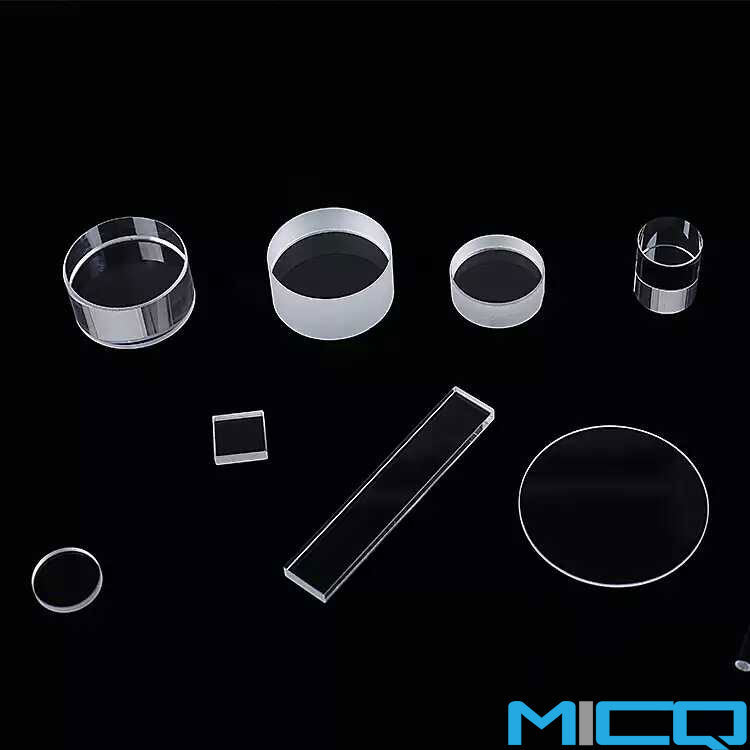

Among the core components of a laser projector, the protective glass of the laser light source module, commonly referred to colloquially as the “laser head”, serves as a critical yet often overlooked component. It directly affects the service life and imaging quality of the laser projection equipment. Among the various protective glass materials, sapphire glass stands out with its outstanding performance and has become a reliable choice for the protective glass of the light source module of laser projector equipment.

The properties of the sapphire glass material can be summarized as follows.

(1) Sapphire glass exhibits excellent optical stability in high-temperature environments

It is widely accepted that when the temperature exceeds 1000°C, the majority of optical materials are susceptible to issues such as diminished light transmittance and refractive index instability. The light transmittance of sapphire in the visible to mid-infrared wavelength (0.15-5.5μm) is almost unaffected by temperature. At a high temperature of 1500°C, the light transmittance of sapphire lenses in the 400-700nm wavelength only decreases by 2.3%, which is significantly better than the 15% attenuation rate of fused quartz. In the event of a 4K laser projector being operated continuously, the optical module (the laser head) will generate heat, which will consequently result in other components being exposed to elevated temperatures. If the protective glass of the optical module is unable to withstand elevated temperatures and its optical performance deteriorates, this will have a significant impact on the imaging quality of the laser equipment.

Due to its extremely high melting point (around 2040°C), excellent thermal conductivity, optical stability and high transmittance (around 84% for the material itself, and over 90% after coating), sapphire glass has become a reliable protective material for laser projection equipment.

(2) Outstanding abrasion resistance and scratch resistance

With a Mohs hardness of up to 9, sapphire glass is second only to diamond in terms of hardness. Its exceptional abrasion and scratch resistance ensures that the projector can withstand the various frictions and collisions of daily use while still presenting clear and bright images.
