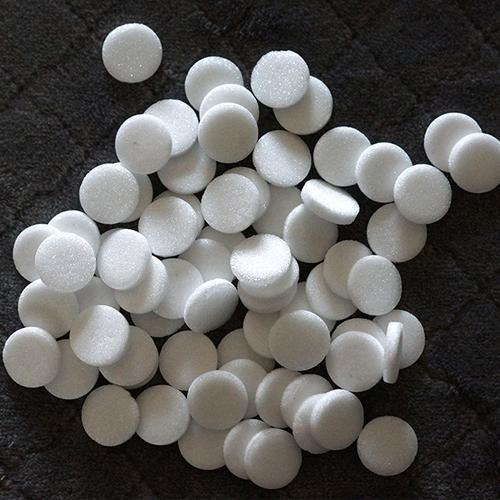

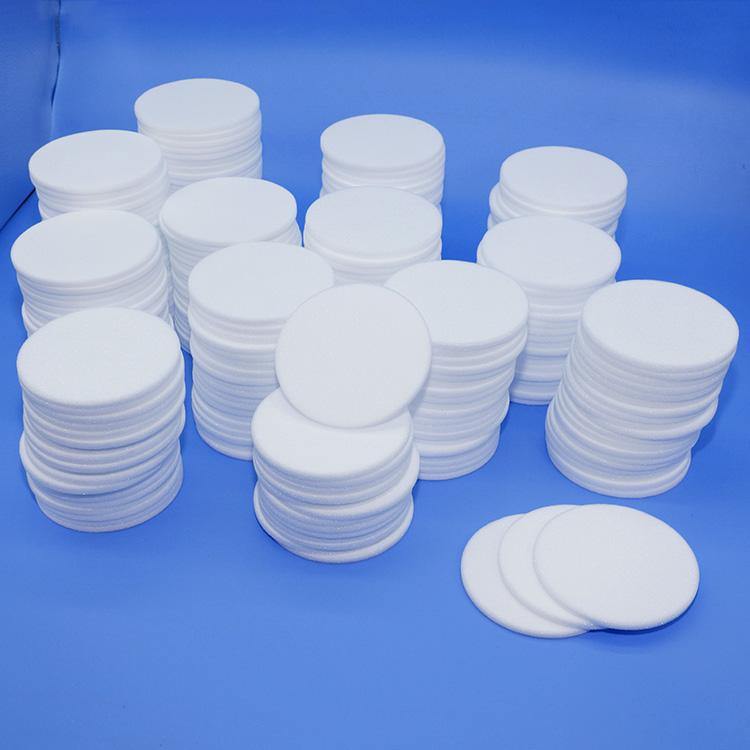

Quartz Frits / Quartz Filters / Quartz Sinters / Quartz Fritted Discs Diameter 40mm

Standard shipping via DHL/FedEx/UPS/TNT/EMS
Type: High Purity Fused Quartz Frits / Fritted Discs / Porous Quartz Filter Discs
Porosity: G00-, G0, G1, G2, G3, G4, G5
Regular Diameter(mm): 10 to 290 of Customizable Size
Regular Thickness(mm): 2 to 10 of Customizable Size

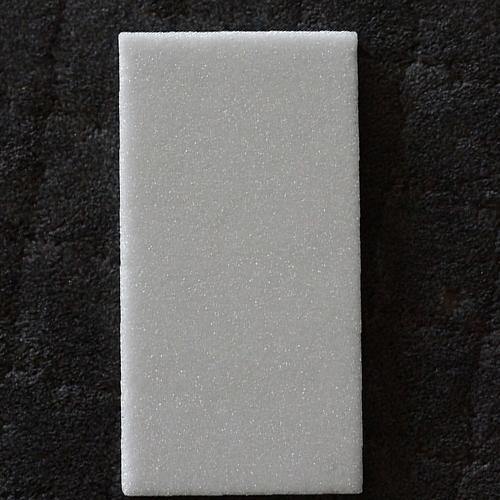

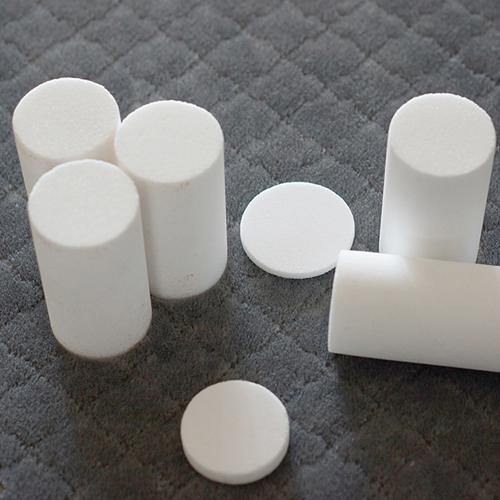

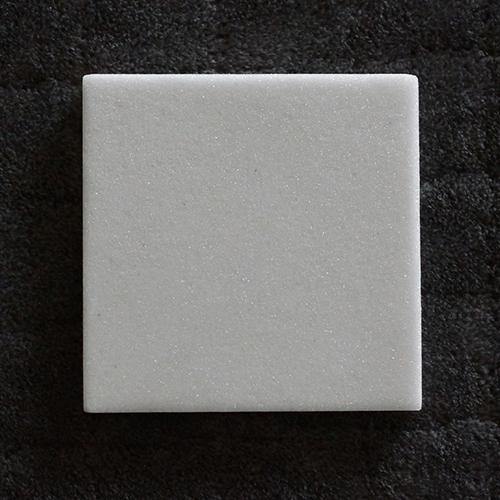

Other Shapes for Customization: Large Size, Rectangular, Cylindrical and Square Quartz Frits
EST: 5-7days

Instructions: Fused quartz frits of our company are made of high purity quartz sand with SiO 2 > 99.99% and high temperature resistance up to 1750 ℃. Then it has even porosity and is durable. It is widely used in various scientific research institutions, university laboratories and other related industrial fields. We are fully capable of producing all types of fused quartz frits with different porosity, sizes and shapes according to the customized requirements. Also, depending on our ability to produce other types of quartz glass products, we would fabricate quartz frits into other quartz glass instruments as a complete product to help our end customers solving their use problems.

Approximate application of various porosity:
G00(250-550 μm) : liquid and gas filtration
G0(160-250 μm) : gas filtration, gas shunting in liquid under low pressure, filtration of very coarse sediment
G1(100-160 μm): coarse filtration, coarse sediment filtration, gas filtration in liquid, slow flow of liquid, filtration of coarse gas, used for making coarse mineral extraction device, and gel filtration substrate with loose filter layer.
G2(40-100 μm) : pre fine filtration, used for preparation of crystalline sediment, mercury filtration
G3(16-40 μm) : analytical filtration, analysis of medium and fine precipitates, preparation of fine precipitates, cellulose chemical filtration, fine gas filtration, fine mineral extraction device,
G4(10-16 μm) Analysis: fine filtration, analysis of very fine sediment (e.g. BaSO4, Cu2O), analysis of sediment with appropriate fineness, mercury check valve and stop valve
G5(5-10 μm) : Used for the analysis of ultra-fine substances. It is usually close to the effect of G4.
