Quartz Discs / Quartz Cover Glass / Quartz Substrates D96mm-D100mm JGS2

$170.00
$170.00
Diameter x Thickness: D96mm x 1mm(5pcs)
Subtotal: $170.00
Quartz Discs / Quartz Cover Glass / Quartz Substrates D96mm-D100mm JGS2

Quartz Discs / Quartz Cover Glass / Quartz Substrates D96mm-D100mm JGS2

$170.00

Quartz Discs / Quartz Cover Glass / Quartz Substrates D96mm-D100mm JGS2

$170.00
Diameter x Thickness: D96mm x 1mm(5pcs)
  • Standard Shipping via DHL/FedEx/UPS/TNT/EMS

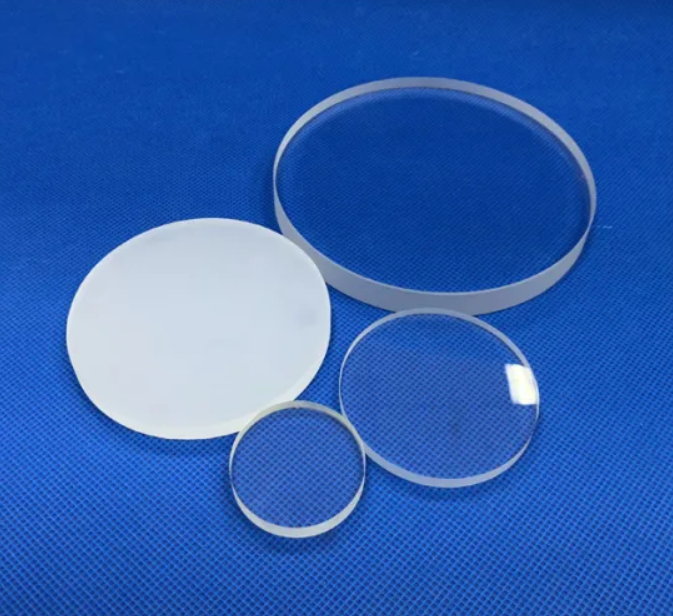

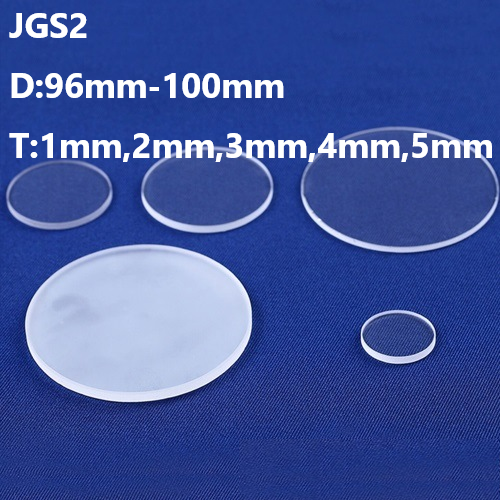

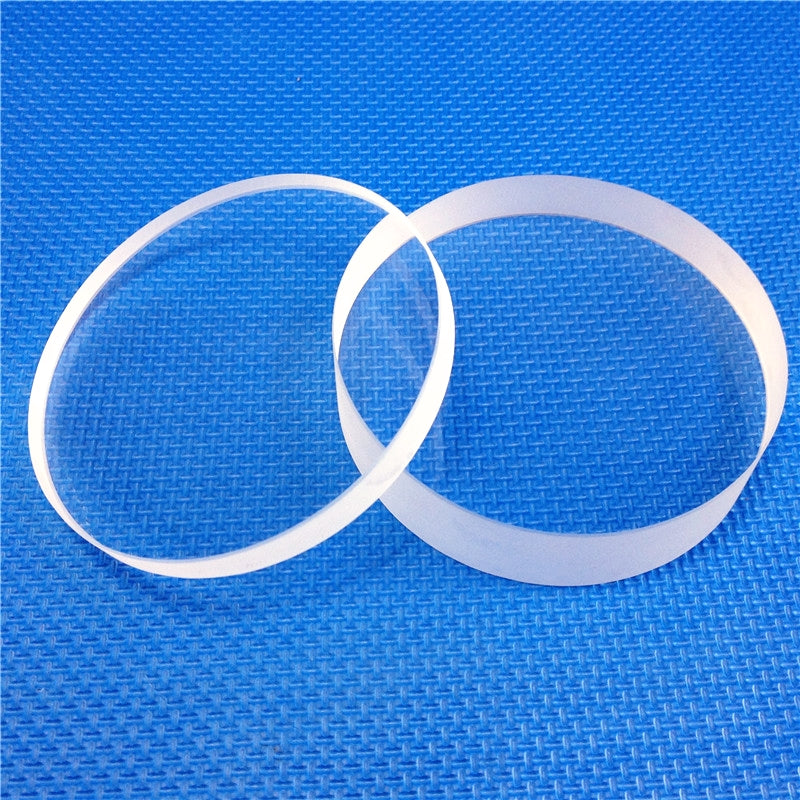

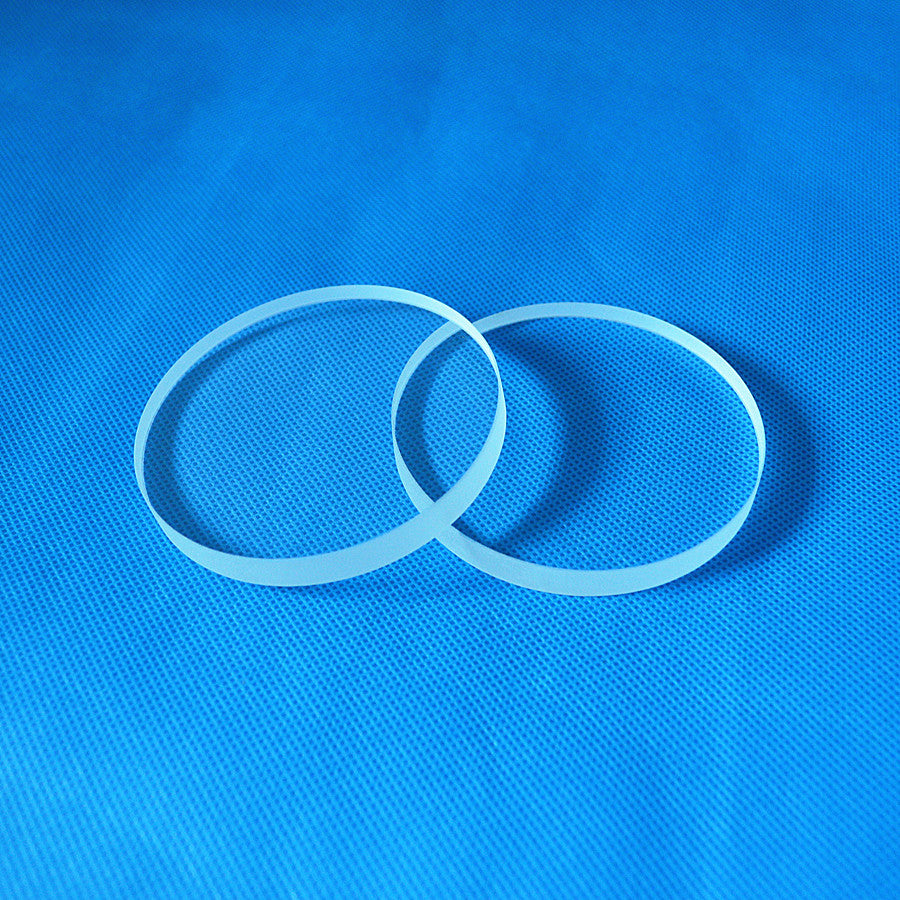

  • Product Name: Quartz Glass Plates or Quartz Discs (Quartz Coverslips or Quartz Slides)
  • Material: High Purity Fused Quartz(JGS2, SiO2>99.99%)
  • Optical Grade or Smoothness of the Surface): 60/40(customizable to 30/20 or 20/10)
  • Surface Roughness (Ra)(um): 0.05-0.2
  • Size Tolerance: Width/Length or Diameter ±0.05~0.1mm, Thicekness ±0.01~0.1mm
  • Chamfer: n/a
  • EST: 3 –7 days



If need other Dimensions, Custom Service or Bulk Price, just to contact email: sales@micquartz.com.

Note:  Size Tolerance & Chamfer depend on specific size conditions.
