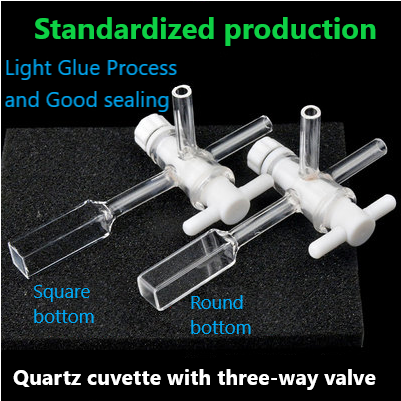

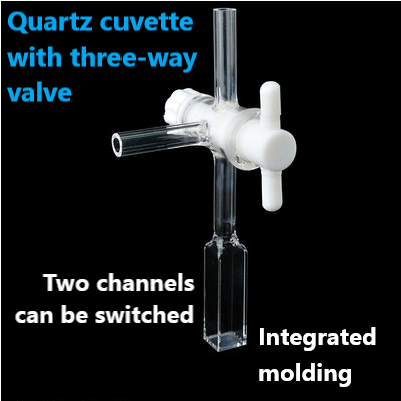

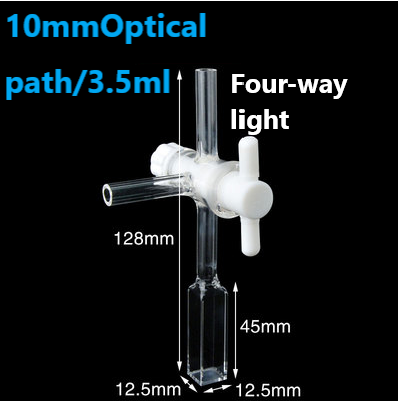

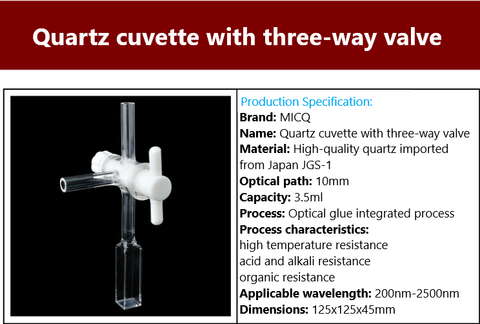

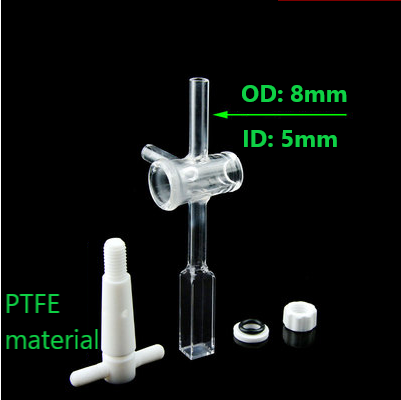

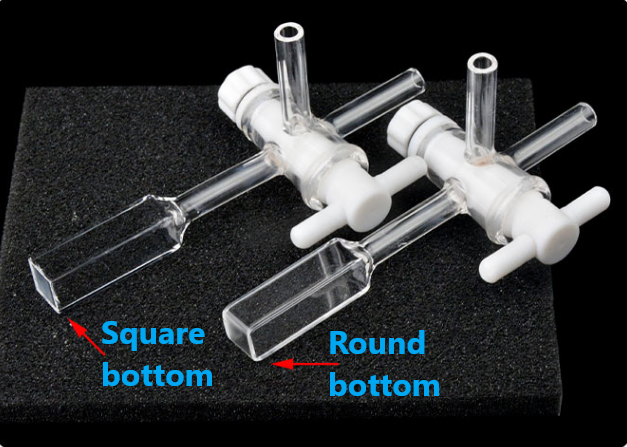

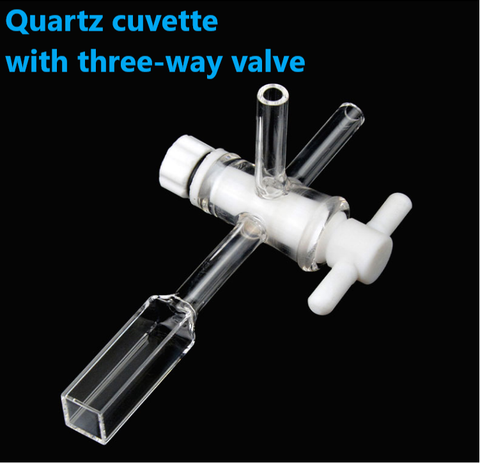

Quartz cuvette with three-way valve, closed type fluorescent four-way optical seal, dual-channel switchable, tetrafluoroethylene plug

1. Application: Widely used in chemical industry, metallurgy, medical, pharmaceutical, food, environmental protection, power plants, water plants, oil and other industries, departments and colleges and universities, and laboratory etc.
2. Material: High purity quartz power.
3. Material properties: High corrosion resistance, very low coefficient of thermal expansion, resistance to high temperature, high chemical purity, extensive optical transmission from ultra-violet to infra-red, excellent electrical insulation.
4. Physical Configuration: standard window and wall thickness.
5. Size: according to the requirements.

Product Features

Product details

Precise optical processing technology, the optical performance error of the light-transmitting surface is ≤0.3%.
It is made of JGS-1 optical quartz glass imported from Japan, without bubbles and streaks.

Use fusion integrated process. Does not fall off, high temperature resistance, acid and alkali resistance, and organic solvent resistance.

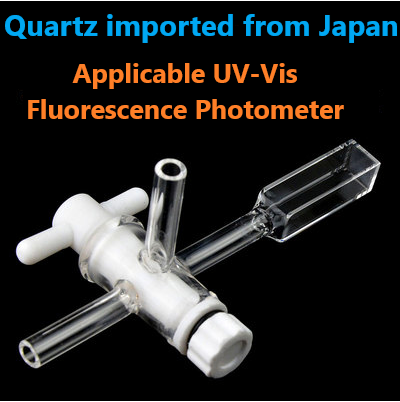

It is suitable for ultraviolet-visible fluorescence spectroscopy analyzers and imported spectrometers with good chemical compatibility.

Each cuvette will be put into a dust-proof bag after passing the inspection to prevent dust from entering during transportation

Material Introduction

***We can supply two form Quartz Cuvette***
1. One is fused Quartz Cuvette (glue free), which is expensive, and suitable for strong corrosive solutions (such as benzene).
2. Another is assembled quartz cuvette with glue, which is cheap, but not for corrosive solutions.

If need other Dimensions, Custom Service or Bulk Price, just to contact email: sales@micquartz.com.

Note: There is a little tolerance in all dimensions.

Learn more about Quartz Glass at our website: https://www.micquartz.com/.
