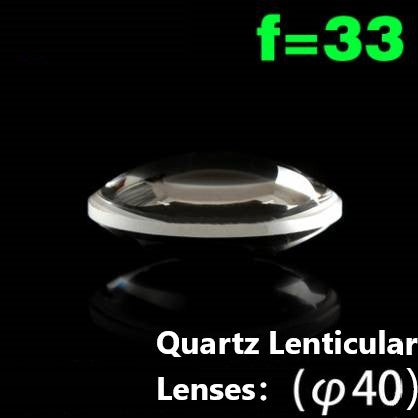

Quartz convex lens diameter 40 focal length 33 double convex UV multi-specification spot

Quartz convex lens diameter 40 focal length 33 double convex UV multi-specification spot

$172.00
$172.00

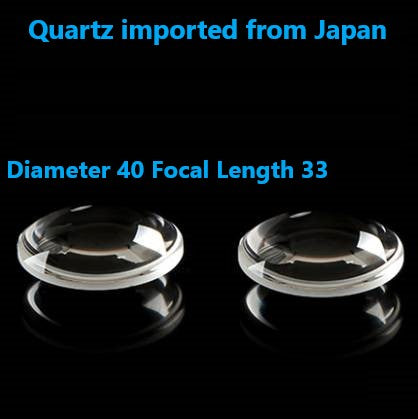

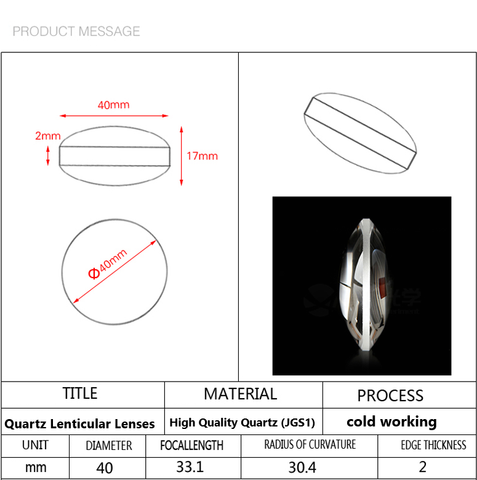

Diameter x Focal Length: Diameter 40 Focal Length 33
Subtotal: $172.00
Quartz convex lens diameter 40 focal length 33 double convex UV multi-specification spot

Quartz convex lens diameter 40 focal length 33 double convex UV multi-specification spot

$172.00
Quartz convex lens diameter 40 focal length 33 double convex UV multi-specification spot

Quartz convex lens diameter 40 focal length 33 double convex UV multi-specification spot

$172.00
Diameter x Focal Length: Diameter 40 Focal Length 33
Description
Precise optical processing technology, the optical performance error of the light-transmitting surface is less than or equal to 0.3%, the material is completely transparent, and the surface quality is excellent.
Made of high quality quartz glass
It is made by fine grinding and finishing process. Excellent surface finish, high light transmittance, and small comprehensive angle error are the guarantee for the success of the experiment.
  • Standard Shipping via DHL/FedEx/UPS/TNT/EMS

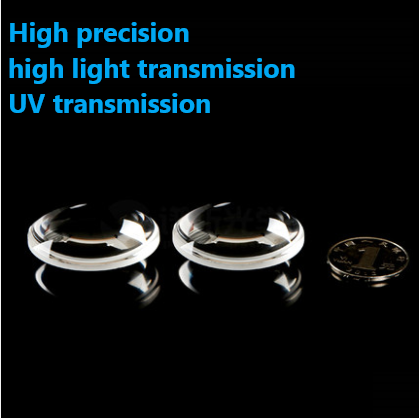

  • Product Name: High Precision Quartz Glass Convex Lens

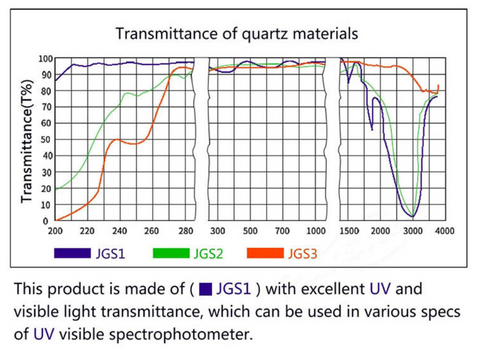

  • Material: JGS1
  • Optical Grade or Smoothness of the Surface): 20/10
  • Surface Roughness (Ra)(um): 0.05-0.1
  • Size Tolerance: Width/Length or Diameter ±0.05~0.1mm, Thicekness ±0.01~0.1mm
  • Chamfer: n/a
  • EST: 3 –7 days



Item

Diameter

Focal Length

Central Thick

Edge Thick

Material

D10mm x F20mm

10mm

20mm

3mm

2mm

JGS1

D30mm x F39.2mm

30mm

39.2m

10.05mm

2mm

JGS1

D6mm x F13.5mm

6mm

13.5mm

3mm

2mm

JGS1

D12.5mm x F23mm

12.5mm

23mm

2.72mm

1mm

JGS1

D55mm x F80mm

55mm

80mm

16.38mm

4mm

JGS1





If need other Dimensions, Custom Service or Bulk Price, just to contact email: sales@micquartz.com.

Note:  Size Tolerance & Chamfer depend on specific size conditions.
