Optical Path Length 5mm Split Type Quartz Sample Cell Counting Cell Flow Cuvette Glued Combination Process Two Sides Transmitting Light Ultraviolet Quartz Cuvette

1. Application: Widely used in chemical industry, metallurgy, medical, pharmaceutical, food, environmental protection, power plants, water plants, oil and other industries, departments and colleges and universities, and laboratory, etc.
2. Material: High quality JGS-1 quartz glass.
3. Material properties: High corrosion resistance, very low coefficient of thermal expansion, resistance to high temperature, high chemical purity, extensive optical transmission from ultraviolet to infrared, excellent electrical insulation.
4. Process: Glued combination process.

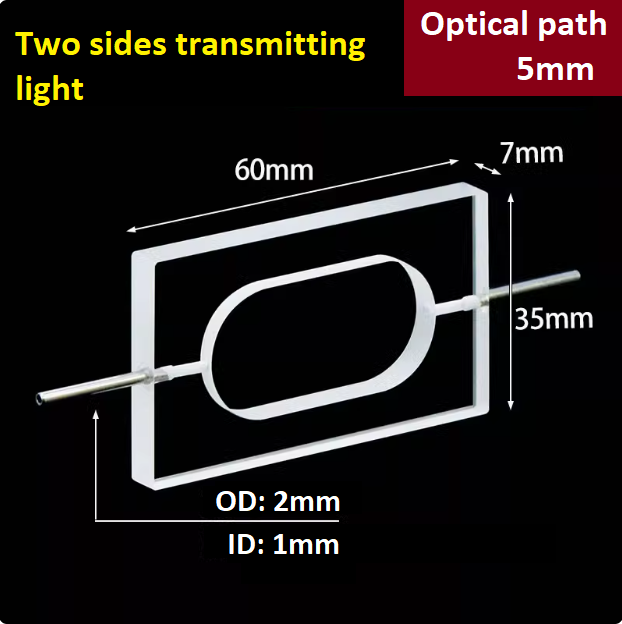

5. Size: Seen in the pictures.

Product Details

• With fine optical processing technology, the optical performance error of the transparent surface is less than 0.3%.
• It is made of JGS-1 optical quartz glass from Japan, without bubbles and streaks.

• With advanced glued combination process, it has high light transmission and can be customized.

• With good chemical compatibility, it is suitable for ultraviolet-visible spectroscopy analyzers and many optical spectrum instruments.

• Each cuvette will be put into a dust-proof bag after passing the inspection to avoid dust entering during transportation.

Material Introduction

If need other Dimensions, Custom Service or Bulk Price, just to contact email: sales@micquartz.com.

Note: There is a little tolerance in all dimensions.

Learn more about Quartz Glass at our website: https://www.micquartz.com/.
